The Aviad Zigalo MG12 SSDR
Was shown at AERO2013 in Friedrichshafen, on Germany 24-27 April: Area B3, Stand 120
We have 3 Full Kits available for sale, the options on these kits are PRE DEALERSHIP Appointment & AVAILABLE AT LESS THAN DEALER PRICE. Once they are sold, Sprite Aviation will be your only option.
All UK or Eire enquiries can now be addressed to http://www.spriteaviation.co.uk/Sprite_Aviation/home.html

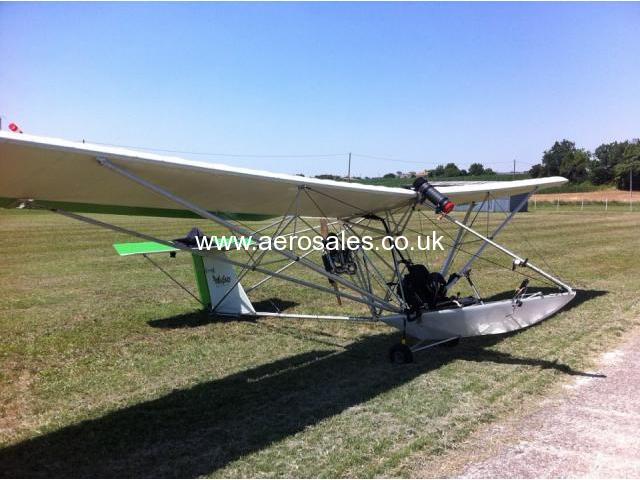

The AVIAD Zigolo MG12 is an SSDR motor glider designed and manufactured in Italy offering an alternative flying experience.
It has slow flight characteristics and a short landing and takeoff distance of 50 meters.
This is a new departure in the form of a minimal three axis SSDR Motor Glider perfectly suited for fun flying.
Specifically designed for simple construction and low cost of ownership, it has a traditional tubular frame structure and
simple bonded fabric covering thus providing a very robust design.
It incorporates several additional novel design features, a forward pilot cockpit protected by the fuselage frame work and
providing an exceptionally wide field of view for improved airmanship.
The rear mounted pusher engine with propeller and the fuel tank are also contained within the airframe offering further protection.
The joy stick mounted engine throttle control further simplifies the aircraft's flight controls enabling additional tasks to be achieved by the pilot in flight.
Additionally the shock absorbing undercarriage and the impact skid beneath the pilots seat further protects the occupant in cases of heavier than normal landings.
An optional ballistic parachute recovery system is available for ultimate emergency use.
The Zigolos design also provides easily constructed airframe assembly modules and is ideally suited for road trailer transportation.
It can be supplied with a storage racking system design for home use but which may easily be adapted for a transportation trailer.
The aircraft's modular assembly enables a ready to fly aircraft to be achieved within about one hour after reaching the chosen airfield.
Fly with a speed range of 35-75 km hr (22-46 m.p.h.) and good stability.
KIT DETAILS
THE Zigolo MG12 Kit does not require specialist knowledge or equipment for assembly. The drawings are very detailed and when followed sequentially provide a step by step guide for assembly. The individual drawings contain a parts list of required components, which are easily identified by the initials engraved on them.
There are photos for each step of the assembly stages.
The Design Drawings are shared online and are made easily accessible for kit manufacturers. All parts are accurately cut, perforated and folded. The assembly process only requires the correct part selection, correct positioning prior to fixing with either bolt or rivet to complete each sub-assembly / module. The complete aircraft's final assembly can be undertaken either within the workshop or in the hangar and does not require an excessive spaces for construction.
The Zigolo MG12 kit requires less than 100 hours for assembly. The aircraft modules once completed can be rigged and ready to fly in 1 hour and offer easy transportation by truck, pick-up or trailer.
Technical Data Moster 185
Cycle: 2 strokes
Stroke: 54 mms
Swept volume: 184.7 cc
Bore: Ø 66 mms
Power: 25 hp at 7.800 rpm
Cylinder: Single cylinder in aluminum Nicasil chromed
Piston: HQ, graphite, 2 rings chromed
Intake: Silencer air-box - Walbro carburetor - Reed valve intake
Cooling: Extraction from propeller
Starter: Manual
Clutch: No clutch, direct transmission
Reduction drive: ratio 1/2.7 - PolyV belt.
Ignition coil: Inductive IDI
Spark-plug: NGK BR9ES
Temperatures max: EGT 550° - CHT 230°
Exhaust pipe: Hand-made with silencer - Optional silencer in carbon fiber
Propeller rotation: Counterclockwise
Fuel: Unleaded gasoline - Synthetic oil 2.5 %
Consumption: 3.0-3.5 liters/hour at 30kg of trust, propeller 125cms
Weight: 12.9 kg; pull starter version
Weight: N/A electric starter version
Weight: N/A pull & electric starter version
