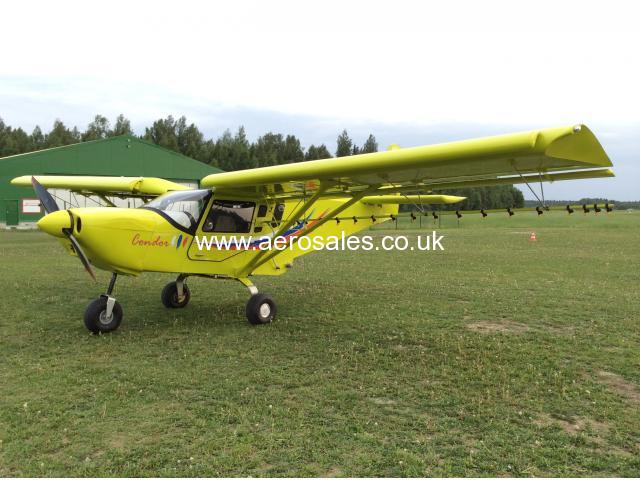

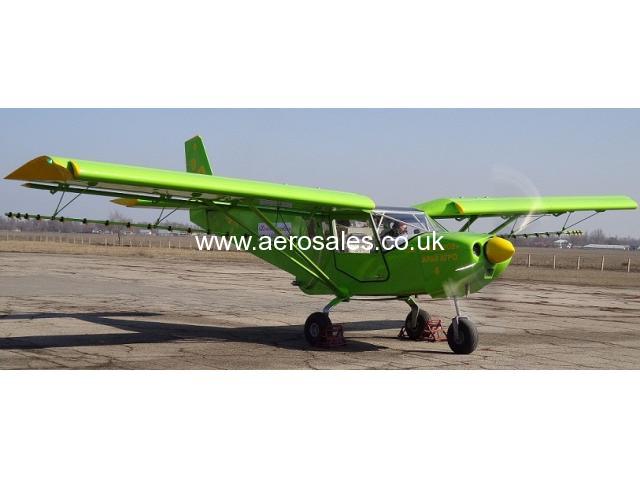

The all-metal 4-seater plane ch801-hd ew Arai Agro
Developed by the Canadian company Zenith Aircraft Ltd
Produced in Kazakhstan certified
Company AviaMaster Aircraft Ltd.
The plane of maximum practicality and versatility ch801-hd ew Arai Agro
The aircraft is designed to operate outside the airport for takeoffs and landings with short sections (from 70 to 90 meters), a dirt road, fields, meadows, mountain plateau, the dry riverbed, the sandy beach and the beach, and other unsuitable for conventional aircraft platforms.
The aircraft has a 4 - local cab

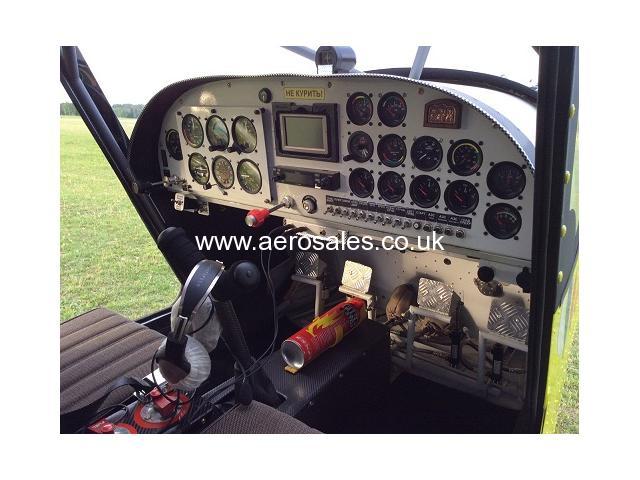

The aircraft has a range of 1200 km to the full tanks, fully equipped with navigational instruments for long-distance flights
The aircraft has dual controls and can be used for pilot training.

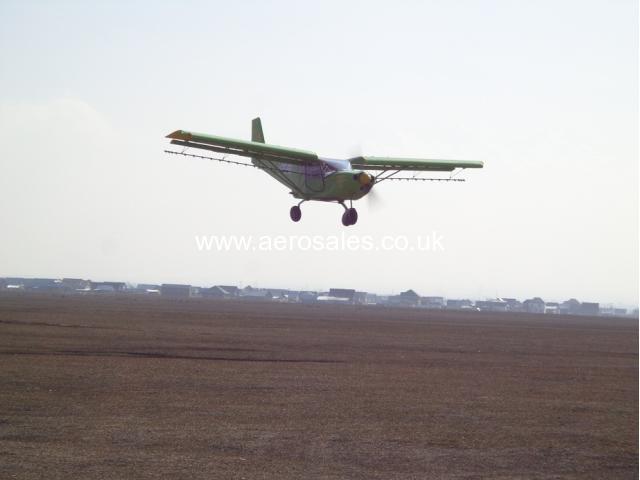

Use of the aircraft ch801-hd ew Arai Agro agriculture
High performance, cost-effectiveness and safety of
Aircraft Arai Agro agroaviatsii to ensure its unique flight performance qualities:
• the opportunity to work with "Outfield"
• Exceptional maneuverability at low speed
• limiting safety near the ground
• Extremely easy maintenance and low cost of operation
Components for aircraft agrochemical works
Plane ch801- hd ew Arai Agro is fully equipped with the necessary equipment for the production of aviahimicheskih works and does not need additional improvements, equipment and settings.
Chemical equipment, including the bar on the wings, it is removable.
Number Specifications Quantity, description Guaranteed to overhaul
1 Engine 180 l / s, 6 liters Lycoming IO-375 B2B 2000 hours
2 all-metal glider 20 000 hours
3 Fuel (gasoline A-95) 35 liters / hour
4 AeroShell Oil consumption of 80 grams / hour
5 Fuel tank capacity 4 pcs. 240 liters
6 cruising speed of 175 km / h
7 Turn rut after 20 seconds
8 Range 1200 km
9 Service ceiling 4000 m
10 The dry weight of 640 kg plane
11 Maximum take-off weight of 1 200 kg
12 Payload 560 kg
13 270 liters capacity himbaka
14 Consumption of chemicals 0.1-12 l / ha
15 Nozzles (small, medium, large drops) Slotted LECHLER 36 pc
16, the actual width of 32-40 meters
17 The length of the run-up to 90 meters
18 The path length of 90 meters
19 unprepared landing pad
20 Side wind 90 to 12 m / sec
21 stall speed of 50 km / h
22 Seats 1pilot + 3passazhira
23, power generator 60 A
24 Additional battery 90 A / h
25 Onboard power supply of 12 volts
26 onboard radio ICOM -210 A
27 navigation devices GARMIN AERA 500
28 ground refueling equipment (pump 3tonny / h, hoses, filters)
29 sets of skis Optional
30 amphibious floats "land-water" Additional Option
